# Doing mass PE upgrades in highly restricted environments

???

---

## $ whoami
<img src="bastelfreak2.jpg" alt="drawing" style="float: right;width: 400px;"/>

* Tim 'bastelfreak' Meusel

* Puppet Contributor since 2012

* Merging stuff on [Vox Pupuli](https://voxpupuli.org/) (Puppet Community) since 2015

* Vox Pupuli Project Management Committee member

* Senior IT Automation Consultant at [betadots](https://betadots.de/)

<a href='https://betadots.de' alt='company website betadots'><img src="logo-1181x1181.png" alt="drawing" style="position: fixed; bottom: 12px; left: 20px; width: 100px;"/></a>
???

* who has seen this picture before because I reviewed/merged your pull request?

---

# Bolt

## Tasks & Plans

???

* Who knows bolt?
---

* CLI only
]

<a href='https://betadots.de' alt='company website betadots'><img src="logo-1181x1181.png" alt="drawing" style="position: fixed; bottom: 12px; left: 20px; width: 100px;"/></a>
.footnote[[@bastelsblog](https://twitter.com/bastelsblog) for [@voxpupuliorg](https://twitter.com/voxpupuliorg)]

???

* So what's a task?
---

* CLI only

* A task is a executable binary/script + json file

```json
{
  "puppet_task_version": 1,
  "supports_noop": false,
  "description": "Rename branch",
  "parameters": {
    "control_repo_branch": {
      "description": "Control-repo branch",
      "type": "String"
    }
  }
}
```

```sh
#!/bin/bash

pushd /tmp/control-repo || exit
git branch -m production old_prod
git branch -m "$PT_control_repo_branch" production
```
]

???

---

* CLI only

* A task is a executable binary/script + json file

* Input and output of each task is JSON

* makes parsing, scripting and concatenating easy
]

???

---

.right-column[
* Bolt Plans are written in Puppet DSL (or [YAML](https://www.puppet.com/docs/bolt/latest/writing_yaml_plans.html))

* Plans apply puppet code, execute Bolt or Puppet functions, start tasks or other plans

```puppet
# @param message the string we want to paste to STDOUT
plan test::foo (
  String[1] $message = 'Hi CfgMgmtCamp!',
) {
  out::message($message)
  run_task('puppet_agent::install', get_targets('all'))
}
```
]

???

* plans and tasks are organized in modules
* plans are parsed top to bottom
* there's a config file with all nodes + credentials

* you can do a bunch of error checking and retrying!

---

# Bolt is the missing part in the ecosystem for imperative workflows and orchestration

## It combines scripts and Puppet code

???

* bolt has more features, please check them out
* but this isn't a bolt talk, just an intro
---
class: center, middle, inverse

# Puppet Enterprise

???

---

???

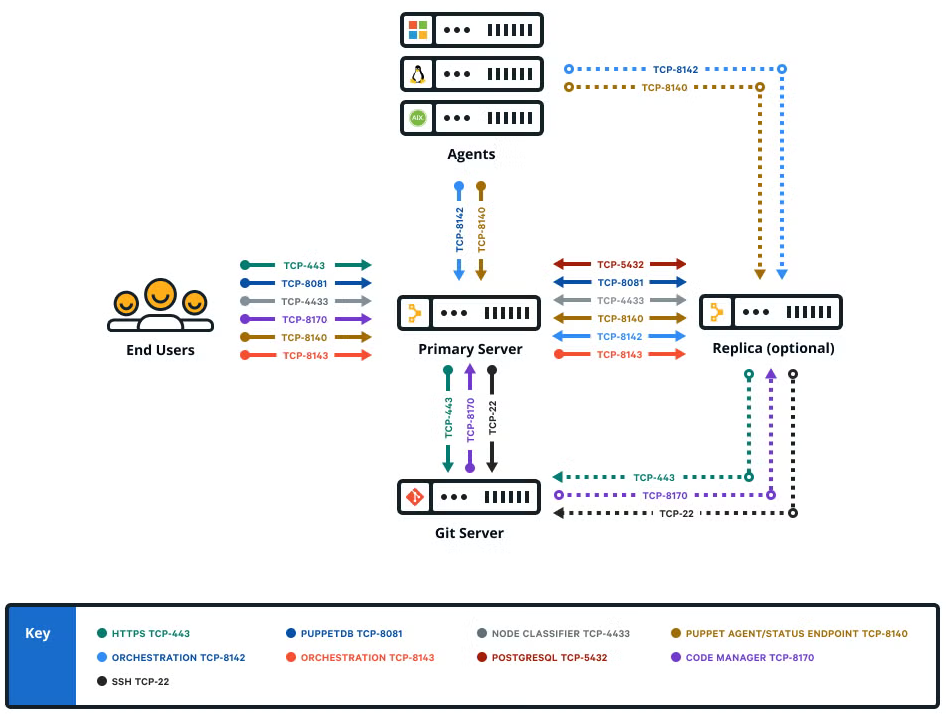

* TCP port 8170 API to trigger r10k/deploy code
---

* Orchestrator can run Puppet tasks and Plans

* Basically an API & Web UI for bolt
]

???

* PE Console is a web UI
---

* Like bolt task & Plans

* Use the PXP agent as transport

]

???

---

* Like bolt task & Plans

* Use the PXP agent as transport

* Orchestrator is closed source, PXP agent is open source

* There are subtle differences between `Bolt plans` and `Plans in PE`

* `Plans in PE` have less features?! https://www.puppet.com/docs/pe/2025.0/plans_limitations.html
]

???

---

# PE in highly restricted environments

## A user story

???

---
.left-column[
## PE
### Setup
]

]

???

* Assume government org, a company that deals with healthcare data or credit card information
---

* Runs 3000 different services

Each service:

* consists of a couple of virtual machines
]

???

---

* Runs 3000 different services

Each service:

* consists of a couple of virtual machines

* needs to be isolated from each other
]

???

* The services are independant from each other

* they are just running in the same datacenter / vmware cluster
---
count: false

* Runs 3000 different services

Each service:

* consists of a couple of virtual machines

* needs to be isolated from each other

* has to be managed by Puppet
]

???

---

![3000 primaries](setup.drawio.svg)
]

???

---

* 1 central GitLab

* contains all puppet modules

* contains 3000 control repos

* 3000 individual primaries

* 5-40 agents per primary

]

???

* so each service has one VM with a primary
* in theory never a compiler, no dedicated puppetdb, no replica
* I don't know how other admins design their service
* I know the PE version that was initially provisioned, I don't know if users touched it

---

"security" constraints:

* No ssh access to a service

]

???

* If there's a downtime, a person with four-eye-principle can get ssh access via jump host
* The "no-ssh" rule is newish, in the past people modified their services by hand
---

"security" constraints:

* No ssh access to a service

* The PE APIs are available

]

???

---

"security" constraints:

* No ssh access to a service

* The PE APIs are available

* No code changes for running services allowed

* Architects wanted "immutable" services

]

???

* When you want to deploy code changes, you need to spin up the same service again and delete the old instance

* every "service type" has it's own control-repo. each deployed service gets its own branch in the control-repo

* this means that no agent is running in a "production" env, but something else

---

"security" constraints:

* No ssh access to a service

* The PE APIs are available

* No code changes for running services allowed

* Architects wanted "immutable" services

* Of course no internet access

* Everything needs to be mirrored internally

* No HTTP proxy available
]

???

* All of this was built over 6? years, I joined the project last year
---
.left-column[
## PE
### Setup
### Constraints
### Job
]

* Update 3000 PE 2019 (Puppet 6) & PE 2021 (Puppet 7) services to PE 2023 (Puppet 8)
]

???

---

* Update 3000 PE 2019 (Puppet 6) & PE 2021 (Puppet 7) services to PE 2023 (Puppet 8)

* Don't use ssh

]

???

---

* Update 3000 PE 2019 (Puppet 6) & PE 2021 (Puppet 7) services to PE 2023 (Puppet 8)

* Don't use ssh

* Fully automated

]

???

* "start the upgrade once, then just wait"
---
count: false

* Update 3000 PE 2019 (Puppet 6) & PE 2021 (Puppet 7) services to PE 2023 (Puppet 8)

* Don't use ssh

* Fully automated

* Please don't break anything
]

???

---

* I mentioned this to Perforce employees
]

???

* We had a discussion in the public slack and were brainstorming a bit
* IRC and slack channels are always great to exchange ideas and discuss issues
---

* I mentioned this to Perforce employees

* Perforce reached out to me for a collaboration

The idea:

* I implement the upgrade somehow

* Perforce assists, helps to review PRs quickly

* Perforce can publish a whitepaper

* We publish the code as open source
]

???

---

* I mentioned this to Perforce employees

* Perforce reached out to me for a collaboration

The idea:

* I implement the upgrade somehow

* Perforce assists, helps to review PRs quickly

* Perforce can publish a whitepaper

* We publish the code as open source

* Perforce stopped responding to all emails

]

???

* I asked a lot of people, multiple times, no responsive

* I don't know why
---

![upgrade docs wo PIM](2025-01-29_14-31.png)
]

???

---

![upgrade docs wo PIM](2025-01-29_14-31.png)

* TL;DR: "ssh to the Primary and download a tarball"
]

???

* This was the default for years

---

* Free to download for everybody
]

???

---

* Free to download for everybody

* for example `puppet-enterprise-2021.7.8-el-8-x86_64.tar.gz`

* PE version specific

* OS specific
]

???

---

* Free to download for everybody

* for example `puppet-enterprise-2021.7.8-el-8-x86_64.tar.gz`

* PE version specific

* OS specific

* contains a yum repo with some rpms and a long bash script
]

???

---

* Free to download for everybody

* for example `puppet-enterprise-2021.7.8-el-8-x86_64.tar.gz`

* PE version specific

* OS specific

* contains a yum repo with some rpms and a long bash script

* one package contains puppet modules
]

???

---

* Free to download for everybody

* for example `puppet-enterprise-2021.7.8-el-8-x86_64.tar.gz`

* PE version specific

* OS specific

* contains a yum repo with some rpms and a long bash script

* one package contains puppet modules

* bash script install the rpms & runs puppet apply
]

???

---

* License prohibits putting the puppet modules into my GitLab

* License prohibits putting the rpms on my local mirror
]

???

* This would have allowed me to make the upgrade without the installer

* We reached out to perforce, they said "nope"

* Are there other ways?

---

* License prohibits putting the puppet modules into my GitLab

* License prohibits putting the rpms on my local mirror

* With the rpms, the upgrade would be so much easier to automate
]

???

* We could have developed a generic plan that does OS patches and include the PE rpms

* Perforce management is so reluctant and stubborn

---
.left-column[
## PE
### Setup
### Constraints
### Job
### Upgrade?
]

* https://www.puppet.com/docs/pe/latest/upgrading_pe.html

* PIM is a frontend around Bolt & [puppetlabs-peadm](https://github.com/puppetlabs/puppetlabs-peadm)

]

???

---

.right-column[
* PIM is a frontend around Bolt & [puppetlabs-peadm](https://github.com/puppetlabs/puppetlabs-peadm)

* PEADM: A module with tasks and plans to install/modify/upgrade PE

]

???

---

.right-column[
* PIM is a frontend around Bolt & [puppetlabs-peadm](https://github.com/puppetlabs/puppetlabs-peadm)

* PEADM: A module with tasks and plans to install/modify/upgrade PE

* PEADM wraps the original installer tarball
]

???

---

.right-column[
* PIM is a frontend around Bolt & [puppetlabs-peadm](https://github.com/puppetlabs/puppetlabs-peadm)

* PEADM: A module with tasks and plans to install/modify/upgrade PE

* PEADM wraps the original installer tarball

* PEADM is compatible with PE 2019.8.1 and newer
]

???

---
.left-column[
## PE
### Setup
### Constraints
### Job
### Upgrade?
### Upgrade!
]

![installer.drawio.svg](installer.drawio.svg)

* We cannot run the installer directly, because we don't have ssh access
]

???

* We canot ssh into a service and run the installer

* we don't have ssh access
---

* Can it upgrade itself?
]

???

* How can we do the upgrade?!
---

* Can it upgrade itself?

* No
]

???

---

* Can it upgrade itself?

* No

* orchestrator rpm needs to be upgraded and service needs to be restarted

* This will deadlock or abort the PEADM plan

![simpleupgrade.drawio.svg](simpleupgrade.drawio.svg)
]

???

---

* The module [puppetlabs/service](https://forge.puppet.com/modules/puppetlabs/service/readme) has tasks to start/stop/inspect a service

]

???

---

* The module [puppetlabs/service](https://forge.puppet.com/modules/puppetlabs/service/readme) has tasks to start/stop/inspect a service

* We could write a systemd unit that starts bolt with `Type=exec`

]

???

---

* The module [puppetlabs/service](https://forge.puppet.com/modules/puppetlabs/service/readme) has tasks to start/stop/inspect a service

* We could write a systemd unit that starts bolt with `Type=exec`

* Then systemd will run bolt in the background (asynchronously)
]

???

---

* The module [puppetlabs/service](https://forge.puppet.com/modules/puppetlabs/service/readme) has tasks to start/stop/inspect a service

* We could write a systemd unit that starts bolt with `Type=exec`

* Then systemd will run bolt in the background (asynchronously)

```
# /etc/systemd/system/peadmmig@.service
# THIS FILE IS MANAGED BY PUPPET
[Unit]
Description=run bolt plans in project peadmmig

[Service]
Type=exec
ExecStart=/opt/puppetlabs/bin/bolt plan run %i --params @/opt/peadmmig/%i.json
User=peadmmig
Group=peadmmig
WorkingDirectory=/opt/peadmmig
# don't add RemainAfterExit,
# then we cannot track the state via puppet anymore after bolt started
```

]

???

---

* A [template service unit](https://www.freedesktop.org/software/systemd/man/latest/systemd.unit.html) contains a single `@` and accepts strings afterwards

* This allows us to pass plan names to our unit

* `systemctl {status,start} peadmmig@profiles::convert.service`

]

???

* We can check if a plan is running

* we can start a plan

* We can then check if a plan is still running or failed or was successful
---

* A [template service unit](https://www.freedesktop.org/software/systemd/man/latest/systemd.unit.html) contains a single `@` and accepts strings afterwards

* This allows us to pass plan names to our unit

* `systemctl {status,start} peadmmig@profiles::convert.service`

* PE doesn't have bolt installed by default

* In [May 2024](https://github.com/puppetlabs/puppet-enterprise_issues/issues/34) we asked if PE could provide bolt by default

* Still no response. It was promised multiple times that someone will take a look at the issue

]

???

* imporant wording: they promised that the product manager will take a look at the request. They didn't promise to implement it.

* And they didn't even look (or if they did, they didn't communicate it)
---

* A [template service unit](https://www.freedesktop.org/software/systemd/man/latest/systemd.unit.html) contains a single `@` and accepts strings afterwards

* This allows us to pass plan names to our unit

* `systemctl {status,start} peadmmig@profiles::convert.service`

* PE doesn't have bolt installed by default

* In [May 2024](https://github.com/puppetlabs/puppet-enterprise_issues/issues/34) we asked if PE could provide bolt by default

* Still no response. It was promised multiple times that someone will take a look at the issue

* Vox Pupuli now has a module to install bolt: [forge.puppet/com/puppet/bolt](https://forge.puppet.com/modules/puppet/bolt/readme)

* The module can create the systemd template service unit + all required configuration files
]

???

---

![complicatedupgrade.drawio.svg](complicatedupgrade.drawio.svg)

]

???

---

![complicatedupgrade.drawio.svg](complicatedupgrade.drawio.svg)

* During development, this worked surprisingly well
]

???

* Is that insane or smart? I don't know

* bolt is executed by systemd

* bolt can restart all PE related services without issues

* PE Orchestrator only needs to be available to initially start bolt, or when I want to query the status

* All bolt stuff will be logged into systemd journal

* we hacked this together by hand on a few test environments and it kinda worked. some obstacles
---

* We need our own plan that does some sanity/health checks

* If everything is fine, our plan starts the peadm::upgrade plan

]

???

* PEADM basically assumes that you run it in a healthy environment

* I don't know the services

* PEADM identifies nodes by checking information in the TLS certificate. eg compiler, primary

* This information only exists if you installed your environment with PEADM.

---

* We need our own plan that does some sanity/health checks

* If everything is fine, our plan starts the peadm::upgrade plan

![morecomplicatedupgrade.drawio.svg](morecomplicatedupgrade.drawio.svg)
]

???

* PEADM basically assumes that you run it in a healthy environment

* I don't know the services

* PEADM identifies nodes by checking information in the TLS certificate. eg compiler, primary

* This information only exists if you installed your environment with PEADM.

---

* We need to run peadm::convert before peadm::upgrade

* This will replace the TLS certificate on your primary
]

???

* peadm::convert will replace TLS certificates for your primary

---

* We need to run peadm::convert before peadm::upgrade

* This will replace the TLS certificate on your primary

* We need to deploy our own plans, but code deployments aren't allowed
]

???

* as mentioned earlier, code deployments are not allowed

* we did some argumentation with the architects

---

* We need to run peadm::convert before peadm::upgrade

* This will replace the TLS certificate on your primary

* We need to deploy our own plans, but code deployments aren't allowed

* "No code deployments that might impact normal puppet agent operations"

* PE supports multiple control repositories

* We can add another control repo, that only contains tasks/plan/modules for PE upgrades

* No agent will make a puppet run in this environment
]

???

---

.left-column[
## PE
### Setup
### Constraints
### Job
### Upgrade?
### Upgrade!
### Deployment?
### Preparation
]

* PE has two ways to specify a control repo:

* A single control repo

```yaml
puppet_enterprise::profile::master::r10k_remote: 'https://github.com/testcontrolrepo.git'
```

* N control repos

```yaml
puppet_enterprise::master::code_manager::sources:
  foo:
    remote: 'https://github.com/bastelfreak/testcontrolrepo.git'
    prefix: false
  baz:
    remote: 'https://github.com/voxpupuli/controlrepo'
    prefix: true
```
]

???

---

.left-column[
## PE
### Setup
### Constraints
### Job
### Upgrade?
### Upgrade!
### Deployment?
### Preparation
]

* You should not specify both Hiera Keys

]

???

* technically it's possible. which is good. So we can start with a setup that has the r10k_remote option and update it inplace to the hash
* It confuses admins because they assume only one option is set.

* there are multiple places where you can configure it, not every place is lookup up always, which can lead to config flips
---

.left-column[
## PE
### Setup
### Constraints
### Job
### Upgrade?
### Upgrade!
### Deployment?
### Preparation
]

* You should not specify both Hiera Keys

* PE Installer takes a config file ([pe.conf](https://www.puppet.com/docs/pe/latest/config_intro.html#configure-settings-peconf)) that accepts Hiera keys

]

???

* of course that was used for many services when they were provisioned
---

.left-column[
## PE
### Setup
### Constraints
### Job
### Upgrade?
### Upgrade!
### Deployment?
### Preparation
]

* You should not specify both Hiera Keys

* PE Installer takes a config file ([pe.conf](https://www.puppet.com/docs/pe/latest/config_intro.html#configure-settings-peconf)) that accepts Hiera keys

* PE Console can also serve Hiera data

]

???

* And during installation, data from the pe.conf is added to the PE Console
* so we need to clean it up in multiple places

* This cannot be disabled. I'm not aware of any PE installation that benefits from this "feature"

* Again we asked roughly a year ago to make it optional to to remove this feature, not a single response
---

.left-column[
## PE
### Setup
### Constraints
### Job
### Upgrade?
### Upgrade!
### Deployment?
### Preparation
]

* You should not specify both Hiera Keys

* PE Installer takes a config file ([pe.conf](https://www.puppet.com/docs/pe/latest/config_intro.html#configure-settings-peconf)) that accepts Hiera keys

* PE Console can also serve Hiera data

* A cronjob dumps PE Console data to disk (user_data.conf)
]

???

* During a upgrade, the agent does a puppet run/apply with just this Hiera data, without your usual code

* this makes it important to cleanup leftovers

* In the puppet ecosystem, which file format would you expect if you store hiera keys?

* Those files are in hocon.
---

.left-column[
## PE
### Setup
### Constraints
### Job
### Upgrade?
### Upgrade!
### Deployment?
### Preparation
]

* You should not specify both Hiera Keys

* PE Installer takes a config file ([pe.conf](https://www.puppet.com/docs/pe/latest/config_intro.html#configure-settings-peconf)) that accepts Hiera keys

* PE Console can also serve Hiera data

* A cronjob dumps PE Console data to disk (user_data.conf)

* pe.conf and user_data.conf use HOCON format
]

???

* Would you expect that Puppet core or stdlib have a function to write HOCON?
---

.left-column[
## PE
### Setup
### Constraints
### Job
### Upgrade?
### Upgrade!
### Deployment?
### Preparation
]

* You should not specify both Hiera Keys

* PE Installer takes a config file ([pe.conf](https://www.puppet.com/docs/pe/latest/config_intro.html#configure-settings-peconf)) that accepts Hiera keys

* PE Console can also serve Hiera data

* A cronjob dumps PE Console data to disk (user_data.conf)

* pe.conf and user_data.conf use HOCON format

* Puppet core/stdlib have no function to write HOCON
]

???

* There's a function to parse HOCON

* As a hack we can stdlib::to_json_pretty() function

* the files can contain comments, they will be deleted
---

.left-column[
## PE
### Setup
### Constraints
### Job
### Upgrade?
### Upgrade!
### Deployment?
### Preparation
]

* Every deployed service has their own control repo branch

* No agents runs in a production environment
]

???

* This is totally fine, puppet agent works
---

.left-column[
## PE
### Setup
### Constraints
### Job
### Upgrade?
### Upgrade!
### Deployment?
### Preparation
]

* Every deployed service has their own control repo branch

* No agents runs in a production environment

* PE Console in some versions requires a production environment to interact with plans
]

???

* This is fixed in recent versions, I don't know anymore when it was fixed
* This was only relevant for the UI, not for the API, so it didn't effect us
* We used the UI during tests
---

.left-column[
## PE
### Setup
### Constraints
### Job
### Upgrade?
### Upgrade!
### Deployment?
### Preparation
]

* Every deployed service has their own control repo branch

* No agents runs in a production environment

* PE Console in some versions requires a production environment to interact with plans

* PEADM assumes that a production branch exists

* This isn't listed as a requirement anywhere
]

???

---

.left-column[
## PE
### Setup
### Constraints
### Job
### Upgrade?
### Upgrade!
### Deployment?
### Preparation
]

* Every deployed service has their own control repo branch

* No agents runs in a production environment

* PE Console in some versions requires a production environment to interact with plans

* PEADM assumes that a production branch exists

* This isn't listed as a requirement anywhere

* We reported this in July 2024

* This was a blocker for the biggest PE customer I ever met

]

???

---

.left-column[
## PE
### Setup
### Constraints
### Job
### Upgrade?
### Upgrade!
### Deployment?
### Preparation
]

* Every deployed service has their own control repo branch

* No agents runs in a production environment

* PE Console in some versions requires a production environment to interact with plans

* PEADM assumes that a production branch exists

* This isn't listed as a requirement anywhere

* We reported this in July 2024

* This was a blocker for the biggest PE customer I ever met

* We did our own debugging and proposed a fix in August 2024

]

???

---

.left-column[
## PE
### Setup
### Constraints
### Job
### Upgrade?
### Upgrade!
### Deployment?
### Preparation
]

* Every deployed service has their own control repo branch

* No agents runs in a production environment

* PE Console in some versions requires a production environment to interact with plans

* PEADM assumes that a production branch exists

* This isn't listed as a requirement anywhere

* We reported this in July 2024

* This was a blocker for the biggest PE customer I ever met

* We did our own debugging and proposed a fix in August 2024

* This is still not released, Engineering and product owner ignore all slack/email messages

* We had escalation meetings with our sales rep and some engineers in September

]

???

* Also they are not directly reachable via a support ticket
* I don't know for sure who is actually responsible
---

.left-column[
## PE
### Setup
### Constraints
### Job
### Upgrade?
### Upgrade!
### Deployment?
### Preparation
]

* Required Hiera keys when the Primary isn't running in production

```yaml
pe_install::install::classification::pe_node_group_environment: 'foo'
puppet_enterprise::master::recover_configuration::pe_environment: 'foo'
```

* Only required for inplace updates

* [puppet.com/docs/pe/latest/upgrading_pe.html](https://www.puppet.com/docs/pe/latest/upgrading_pe.html#update_environment)
]

???

* Customer made a mistake, PE requires you to set those two keys to the environment name that the primary uses

* this is documented

* customer never did inplace updates before and never read the upgrade docs, so this wasn't configured
---

.left-column[
## PE
### Setup
### Constraints
### Job
### Upgrade?
### Upgrade!
### Deployment?
### Preparation
]

* Puppet agent sometimes starts a run in production environment

* ENC tells the agent the correct environment

* puppet agent starts again
]

???

* The behaviour for determining the correct environment changed a bit in past years

* Agent tries to remember the past environment and reuse that for the next run

* during an agent upgrade, the state can get lost
---

.left-column[
## PE
### Setup
### Constraints
### Job
### Upgrade?
### Upgrade!
### Deployment?
### Preparation
]

* Puppet agent sometimes starts a run in production environment

* ENC tells the agent the correct environment

* puppet agent starts again

```puppet
ini_setting { 'puppet.conf environment':
  ensure  => 'present',
  path    => '/etc/puppetlabs/puppet/puppet.conf',
  section => 'agent',
  setting => 'environment',
  value   => $env,
}
```
]

???

* hundred ways available to set the environment
---

.left-column[
## PE
### Setup
### Constraints
### Job
### Upgrade?
### Upgrade!
### Deployment?
### Preparation
]

* Puppet agent sometimes starts a run in production environment

* ENC tells the agent the correct environment

* puppet agent starts again

For properly managing Puppet:

* [forge.puppet.com/puppetlabs/puppet_agent](https://forge.puppet.com/modules/puppetlabs/puppet_agent)

* By default ignores the puppet.conf on your PE Infra

* [forge.puppet.com/theforeman/puppet](https://forge.puppet.com/modules/theforeman/puppet)
]

???

* hundred ways available to set the environment

---

.left-column[
## PE
### Setup
### Constraints
### Job
### Upgrade?
### Upgrade!
### Deployment?
### Preparation
]

Is a service in a healthy state so we can upgrade PE?

* Just one Primary, no other PE infra nodes?

* All agents delivered a report in the last 30 minutes?

* No failed resources, no cached catalog, no skipped resources?

* Same puppet agent version everywhere?
]

???

---

.left-column[
## PE
### Setup
### Constraints
### Job
### Upgrade?
### Upgrade!
### Deployment?
### Preparation
]

Is a service in a healthy state so we can upgrade PE?

* Just one Primary, no other PE infra nodes?

* All agents delivered a report in the last 30 minutes?

* No failed resources, no cached catalog, no skipped resources?

* Same puppet agent version everywhere?

* [puppetlabs/pe_status_check](http://forge.puppet.com/puppetlabs/pe_status_check) contains plans to get those information

* We contributed some of them

* In the past reviews were done in a week, now it takes months to get a response

* Unclear who's responsible
]

???

---

.left-column[
## PE
### Setup
### Constraints
### Job
### Upgrade?
### Upgrade!
### Deployment?
### Preparation
]

* Let us glue everything together!

```puppet
plan profiles::convert (
  Peadm::SingleTargetSpec $primary_host,
) {
  run_plan('profiles::subplans::precheck', { 'primary_host' => $primary_host })

# peadm::convert does two more sanity checks:
  #   - do we have the correct bolt version
  #   - are all nodes reachable
  run_plan('peadm::convert', { 'primary_host' => $primary_host, '_run_as' => 'root' })

# peadm::upgrade doesn't do a final puppet run without changed resources
  # To have a clean report, we trigger a puppet run here
  # we  run it twice, in case we've a raise condition with an already running puppet agent
  $params = {'_run_as' => 'root', '_catch_errors' => true }
  $result = run_task('peadm::puppet_runonce', $primary_host, $params)
  # ok is true if the task was successful on all targets
  unless $result.ok {
    out::message("Final peadm::puppet_runonce failed with: ${result}")
    out::message('Trying another puppet run')
    run_task('peadm::puppet_runonce', $primary_host, '_run_as' => 'root')
  }
}
```
]

???

---

.left-column[
## PE
### Setup
### Constraints
### Job
### Upgrade?
### Upgrade!
### Deployment?
### Preparation
]

Open Source plans we have:

* `convert` - does all the healthchecks & prepare steps & `peadm::convert`

* `upgrade` - accepts a PE version as parameter, does healthcheck and then upgrades

* `convertandupgradeto2021` - convert & upgrade to latest PE 2021

* `convertandupgradeto2023` - convert & upgrade to latest PE 2023
]

???

I Would love to show you them, but they don't fit properly on the screen, it's way too much code
---

.left-column[
## PE
### Setup
### Constraints
### Job
### Upgrade?
### Upgrade!
### Deployment?
### Preparation
]

Open Source plans we have:

* `convert` - does all the healthchecks & prepare steps & `peadm::convert`

* `upgrade` - accepts a PE version as parameter, does healthcheck and then upgrades

* `convertandupgradeto2021` - convert & upgrade to latest PE 2021

* `convertandupgradeto2023` - convert & upgrade to latest PE 2023

* All of this is under GPL license at [github.com/bastelfreak/testcontrolrepo](https://github.com/bastelfreak/testcontrolrepo/tree/peadm/site/profiles/plans)

* Contains lots of sanity checks, tested in many many different scenarios
]

???

---

.left-column[
## PE
### Setup
### Constraints
### Job
### Upgrade?
### Upgrade!
### Deployment?
### Preparation
]

* Configure `https://github.com/bastelfreak/testcontrolrepo` as your control-repo

* create an environment nodegroup for `peadm`, assign your primary to it

* Assign the `profiles::cleanup` and `profiles::boltprojects` classes

* run your puppet agent

* to convert and Upgrade, take a look at the plans in `site/profiles/plans`
]

???

---

# Conclusion

???

---

???

---

* You can do fully automated PE upgrades, without SSH access
]

???

---

* You can do fully automated PE upgrades, without SSH access

* checkout [github.com/bastelfreak/testcontrolrepo](https://github.com/bastelfreak/testcontrolrepo/tree/peadm?tab=readme-ov-file#demo-controlrepo-for-peadm)

]

???

* An upgrade in open source is easier, because we've proper packages

* an upgrade in open source is also less complex becaue PE has more components and services

* Working with PE management / Product owners was a challenge
---

* You can do fully automated PE upgrades, without SSH access

* checkout [github.com/bastelfreak/testcontrolrepo](https://github.com/bastelfreak/testcontrolrepo/tree/peadm?tab=readme-ov-file#demo-controlrepo-for-peadm)

* Let me know if you are interested in a demo!

* For feedback: `bastelfreak` on <a href="https://slack.puppet.com/">slack.puppet.com</a>/Libera.Chat IRC or [tim@bastelfreak.de](mailto:tim@bastelfreak.de)

* This talk and previous ones: <a href='https://github.com/bastelfreak/talks'>github.com/bastelfreak/talks</a>

### Thanks for your attention!

]

???

* how to deploy code
* different preparation steps
* cleanup node groups / pe.conf
* ensure PEADM uses correct node group
* the issue with the installer URL
* stderr redirection https://github.com/puppetlabs/puppetlabs-peadm/pull/523
* duplicated tasks for running puppet agent
* duplicated fact detection https://github.com/puppetlabs/puppetlabs-peadm/pull/459
* puppetlabs/node_manager doesn't allow uppercase environment names
