# Scaling and monitoring your puppetserver for thousands of clients
## Includes all pitfalls!

---

## $ whoami

* Tim 'bastelfreak' Meusel

* DevOps Engineer at GoDaddy EMEA

* Puppet Contributor since 2012

* Merging stuff on Vox Pupuli since 2015

* Vox Pupuli PMC member

???

---

.footnote[[@bastelsblog](https://twitter.com/bastelsblog) for [@voxpupuliorg](https://twitter.com/voxpupuliorg)]

???

* Who of you runs puppetserver?
* This is how it all starts, a single box

---

.footnote[[@bastelsblog](https://twitter.com/bastelsblog) for [@voxpupuliorg](https://twitter.com/voxpupuliorg)]

???

* Who of you runs puppetserver?
* This is how it all starts, a single box

---

.footnote[[@bastelsblog](https://twitter.com/bastelsblog) for [@voxpupuliorg](https://twitter.com/voxpupuliorg)]

???

---

.footnote[[@bastelsblog](https://twitter.com/bastelsblog) for [@voxpupuliorg](https://twitter.com/voxpupuliorg)]

???

---

.footnote[[@bastelsblog](https://twitter.com/bastelsblog) for [@voxpupuliorg](https://twitter.com/voxpupuliorg)]

???

---

.left-column[
# starting point
## Puppetserver
## PuppetDB
## Postgresql
## PuppetBoard
## Foreman
## gnatsd
]

.footnote[[@bastelsblog](https://twitter.com/bastelsblog) for [@voxpupuliorg](https://twitter.com/voxpupuliorg)]

???

* messaging daemon for choria -> mcollective replacement

---

## Coworker: Puppet agents are slow, can you please check the monitoring?

---

## Coworker: Puppet agents are slow, can you please check the monitoring?
## Uhm, which monitoring?

???

---

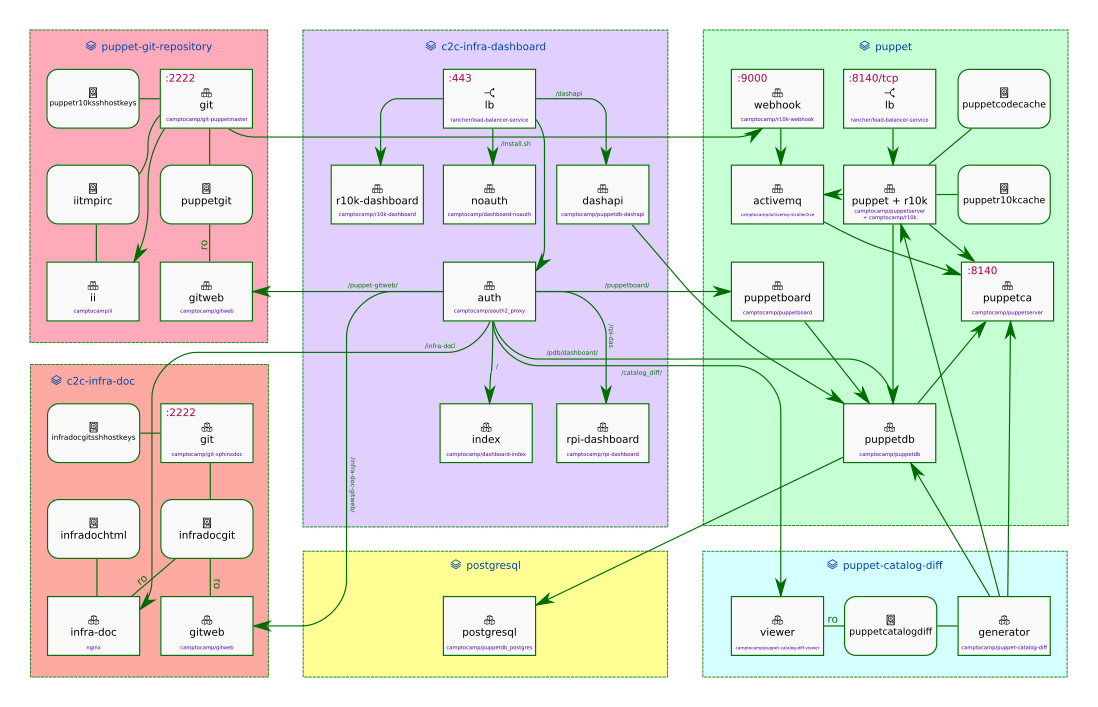

.footnote[© [camptocamp](https://www.camptocamp.com/de/actualite/an-orchestrated-puppet-infrastucture-with-docker-and-rancher/)]
---

.footnote[[@bastelsblog](https://twitter.com/bastelsblog) for [@voxpupuliorg](https://twitter.com/voxpupuliorg)]

???

* I will now talk about the improvements that we did

* They are ordered the way we did them, not the optimal way

* People should probably start with metrics...

---

* One jruby instance compiles one catalog at a time

* More instances => more catalogs per minute

* Use [theforeman/puppet](https://forge.puppet.com/theforeman/puppet) to configure puppeterver

```yaml
---
puppet::server_max_active_instances: %{facts.processors.count}
```
]

.footnote[[@bastelsblog](https://twitter.com/bastelsblog) for [@voxpupuliorg](https://twitter.com/voxpupuliorg)]

???

If there is nothing on a server except for puppetserver, we can give it as many jruby instances as cores

---

* \+ Minimal decreased compilation time for each catalog

* \- You should clean the cache after each deploy

```yaml
---
puppet::server_environment_class_cache_enabled: true
```

* cleaning the cache:

```sh
curl -i --cert $(puppet config print hostcert) \
--key $(puppet config print hostprivkey) \
--cacert $(puppet config print cacert) \
-X DELETE \
https://$(puppet config print server):8140/puppet-admin-api/v1/environment-cache?environment=production
```
]

.footnote[[@bastelsblog](https://twitter.com/bastelsblog) for [@voxpupuliorg](https://twitter.com/voxpupuliorg)]

???

It can be purged globally or per env. Cache can be configured for each env

---

* [theforeman/puppet](https://forge.puppet.com/theforeman/puppet) creates the `development` and `production` environment

* r10k purges unknown environments

* [theforeman/puppet](https://forge.puppet.com/theforeman/puppet) restarts puppetserver if it creates an environment

* I have no git branches named `development` nor `production` in my control repo...

* Each environment deploy lead to a restarted puppetserver for weeks

```yaml
---
# don't create development/production env
puppet::server_environments: []
# don't create /etc/puppetlabs/code/environments/common
puppet::server_common_modules_path: ''
```
]

.footnote[[@bastelsblog](https://twitter.com/bastelsblog) for [@voxpupuliorg](https://twitter.com/voxpupuliorg)]

---

* JVM has a configureable minimal and maximal amount of memory to allocate

* Memory is shared across all jruby instances (and other threads)

* Puppet docs suggest that minimal=maximal memory

* That is based on Java 6 docs, so probably outdated

* Required memory per instance depends entirely on the codebase (modules)

* 2GB seem to work out fine for my setup

```puppet
# How do I do this with hiera?
$cpu_count_twice = $facts['processors']['count'] * 2
$cpu_count = $facts['processors']['count'] * 1
class{'puppet':
  server_jvm_min_heap_size => "${cpu_count}G",
  server_jvm_max_heap_size => "${cpu_count_twice}G",
}
```
]

.footnote[[@bastelsblog](https://twitter.com/bastelsblog) for [@voxpupuliorg](https://twitter.com/voxpupuliorg)]

???

higher minimal heap size => higher startupt time

---

* foreman supports caching out of the box

* we use [saz/memcached](https://forge.puppet.com/saz/memcached) to provision [memcached](https://memcached.org/)

```yaml
# 50GB of cache
memcached::max_memory: 51200
foreman::plugin::memcache::hosts:
  - 127.0.0.1
```

```puppet
include memcached
include foreman::plugin::memcache
```
]

.footnote[[@bastelsblog](https://twitter.com/bastelsblog) for [@voxpupuliorg](https://twitter.com/voxpupuliorg)]

???

* Foreman still feels slow

* memcached is a memory object caching system

* Helps caching $things for foreman

* Is required if you ever run a distributed foreman
---

* `passenger-status` says it only runs with a single process..

* [theforeman/foreman](https://forge.puppet.com/theforeman/foreman) uses [puppetlabs/apache](https://forge.puppet.com/puppetlabs/apache) to configure [passenger](https://www.phusionpassenger.com/library/admin/apache/overall_status_report.html)

```yaml
---
apache::mod::passenger::passenger_max_pool_size: %{facts.processors.count}
apache::mod::passenger::passenger_min_instances: %{facts.processors.count}
```
]

.footnote[[@bastelsblog](https://twitter.com/bastelsblog) for [@voxpupuliorg](https://twitter.com/voxpupuliorg)]

???

after this we see database issues in the foreman logfile

---

* We use [theforeman/foreman](https://forge.puppet.com/theforeman/foreman) to manage foreman

* Tuned puppetserver results in more requests to foreman

```yaml
---
# default is 5
foreman::db_pool: 20
foreman::keepalive: true
foreman::max_keepalive_requests: 1000
foreman::keepalive_timeout: 180
```
]

.footnote[[@bastelsblog](https://twitter.com/bastelsblog) for [@voxpupuliorg](https://twitter.com/voxpupuliorg)]

???

* Puppetserver server isn't running at full load, but agents are slow
* maybe the node.rb is slow as hell?
* keepalive is active by default, but only for 5 seconds / 100 requests
* keeps the connection to puppetserver open and reduces overhead (handshake/TLS)
* We just killed our database with too many connections

---

* This deserves a dedicated conference (there actually is)

* Attend the [PostgresConf](https://postgresconf.org/conferences/) or the PostgreSQL DevRoom at [FOSDEM](https://fosdem.org/2019/)

* Ask people in #postgresql on freenode

* Use at least postgres 10 and rely on the upstream repos if possible

* Don't use harddrive, SATA/SAS SSDs and NVMe SSDs are the way to go

* Execute pgtune

```sh
pgtune -i /var/lib/pgsql/10/data/postgresql.conf -o postgresql5.conf
```

```puppet
postgresql::server::config_entry{'max_connections':
  value => 400,
}
```
]

.footnote[[@bastelsblog](https://twitter.com/bastelsblog) for [@voxpupuliorg](https://twitter.com/voxpupuliorg)]

???

* databases are so compley
* Upstream postgres supports Debian and RHEL/IBM based operatingsystems
* postgres10 supports parallel/multithreaded queries
* puppetdb doesn't support postgres10 yet, but it works. support comes with the next minor release
* we had no issues with garbadge collection

---

* Simply JVM service that scales good with the amount of threads

* It's a RESTful service that stores data in PostgreSQL

```yaml
puppetdb::server::java_args:
  '-Xmx': '8192m'
  '-Xms': '2048m'
puppetdb::server::node_ttl: '14d',
puppetdb::server::node_purge_ttl: '14d',
puppetdb::server::report_ttl: '999d'
# default is 50
puppetdb::server::max_threads: 100
# default is processorcount / 2
puppetdb::server::command_threads: %{facts.processors.count}
# default is 4, have your database in mind
puppetdb::server::concurrent_writes: 8
puppetdb::server::automatic_dlo_cleanup: true
```
]

.footnote[[@bastelsblog](https://twitter.com/bastelsblog) for [@voxpupuliorg](https://twitter.com/voxpupuliorg)]

???

---

.right-column[
.logo[
![image](architecture4.svg)
]
]
.footnote[[@bastelsblog](https://twitter.com/bastelsblog) for [@voxpupuliorg](https://twitter.com/voxpupuliorg)]

???

Depening on the amount of resources / agent runinterval, a single puppetserver just doesn't have enough resources
scale out instead of scale up
Master of Masters. The agent on all other masters request a catalog from the MoM
We don't want a loadbalancer as that would be a single point of failure

---

[Puppetserver docs](https://github.com/puppetlabs/trapperkeeper-webserver-jetty9/blob/master/doc/jetty-config.md):

* `selector-threads`: This sets the number of selectors that the webserver will dedicate to processing events on connected sockets for unencrypted HTTPS traffic. No known upper limit

* `ssl-selector-threads`: same as `selector-threads`, just for HTTPS. "Defaults to the number of virtual cores on the host divided by 2, with a minimum of 1 and maximum of 4"
]

.footnote[[@bastelsblog](https://twitter.com/bastelsblog) for [@voxpupuliorg](https://twitter.com/voxpupuliorg)]

---

---

* Deploy nginx on each Puppetserver server to terminate TLS

* Increase default threadcount from 1 to $more...

* Bind puppetserver to localhost with http

* And don't require TLS client certificates

* Setup consul for dynamic loadbalancing across all puppetservers

* Soonish available at [github.com/bastelfreak/puppetcontrolrepo](https://github.com/bastelfreak/puppetcontrolrepo#puppet-all-in-one-stack-on-centos-7)

]

.footnote[[@bastelsblog](https://twitter.com/bastelsblog) for [@voxpupuliorg](https://twitter.com/voxpupuliorg)]

???

* consul provides DNS loadbalancing
* We can provide a health script to check if puppetserver still works, otherwise consul disables the node
* repo has unit and acceptance test
* Explain why DNS round robin via normal DNS servers sucks

---

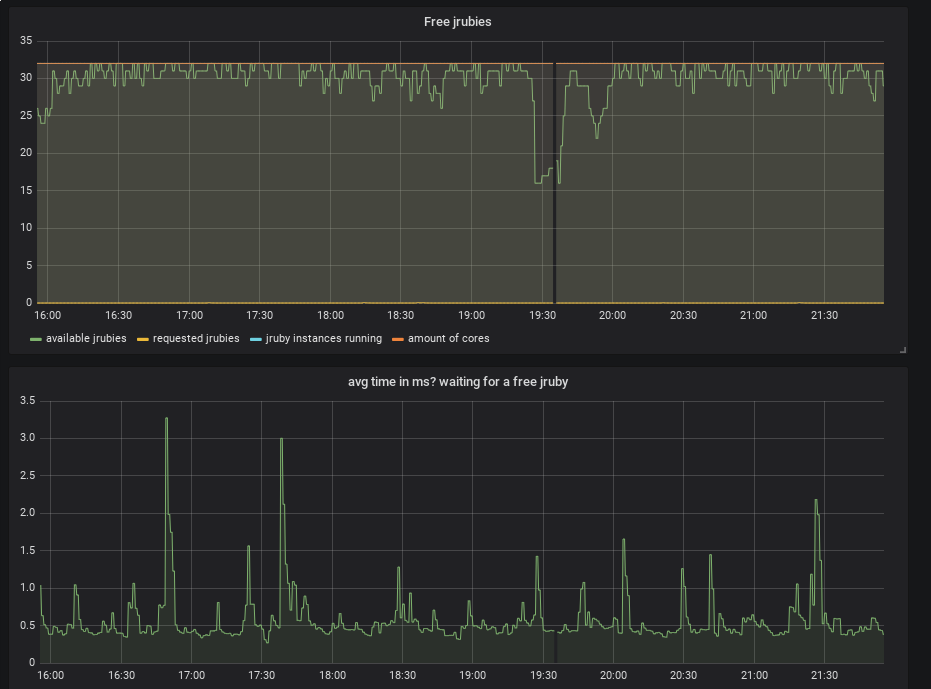

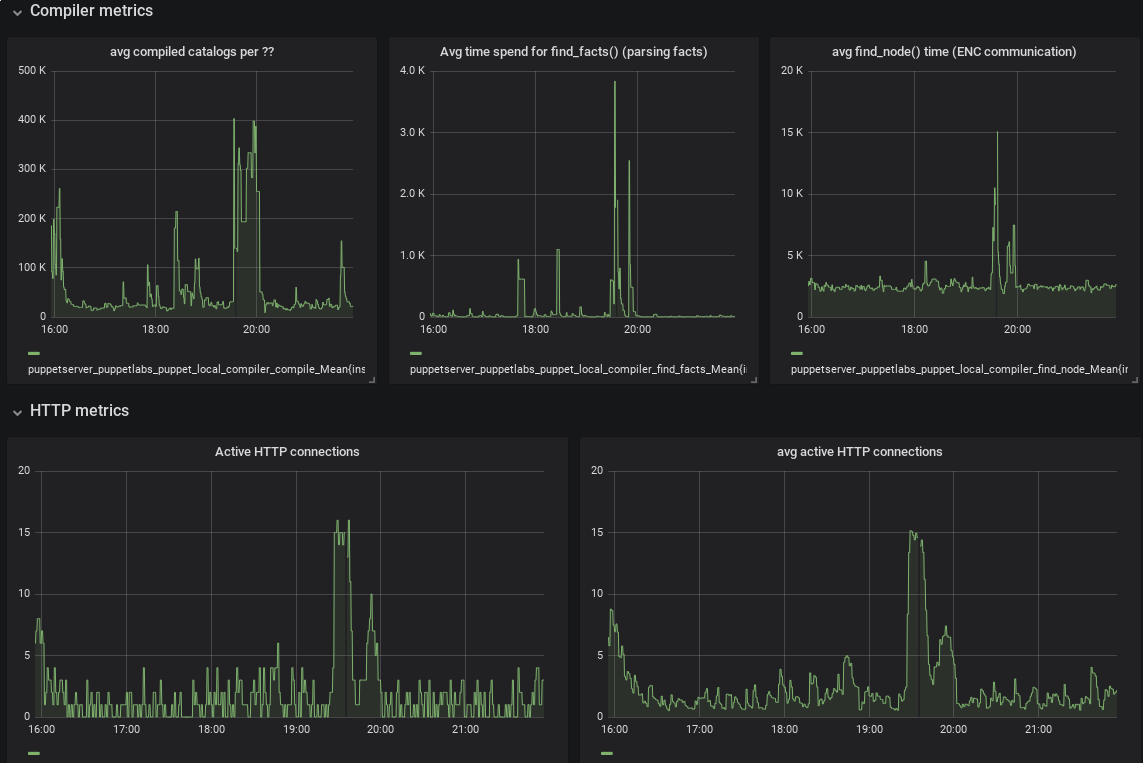

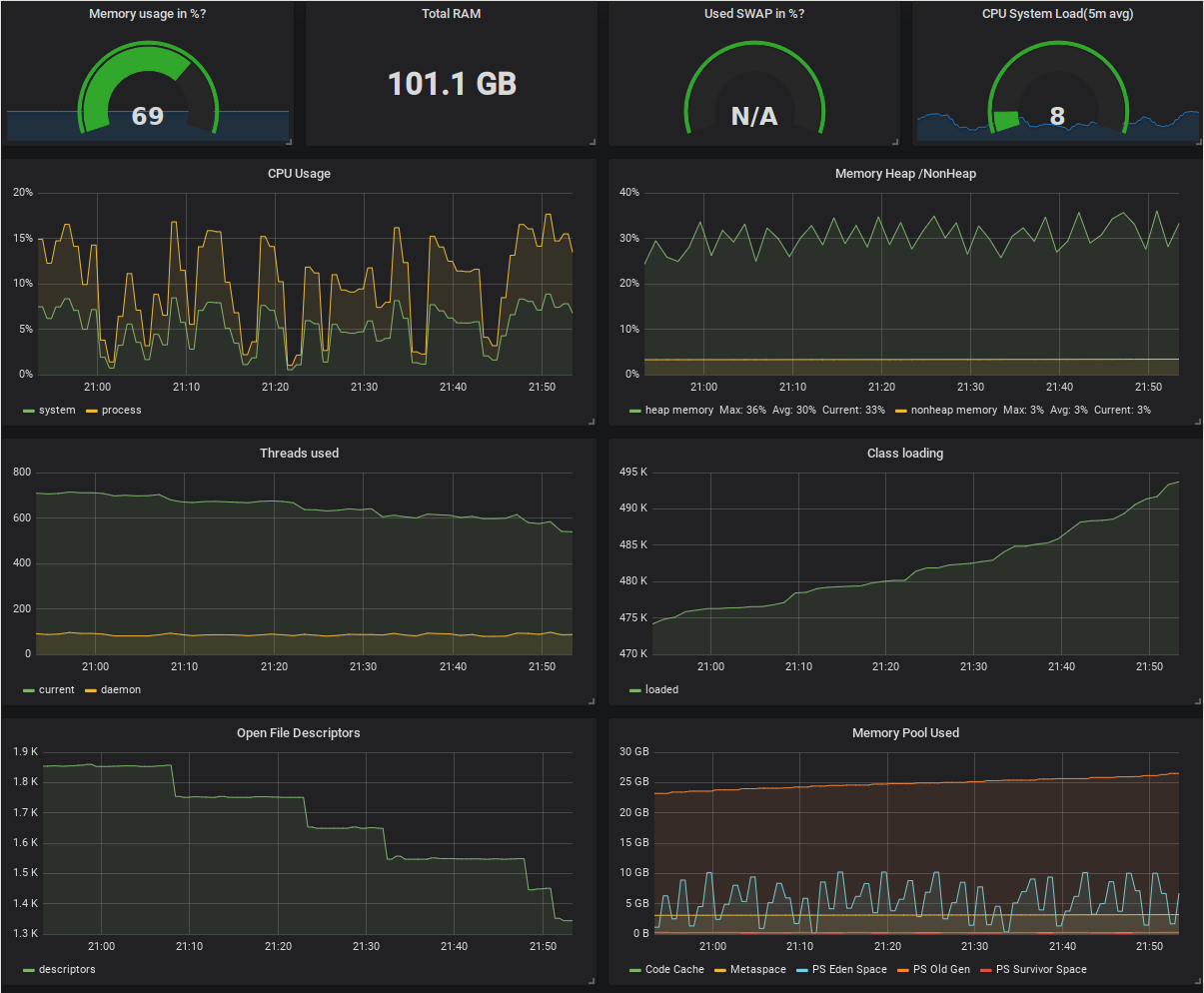

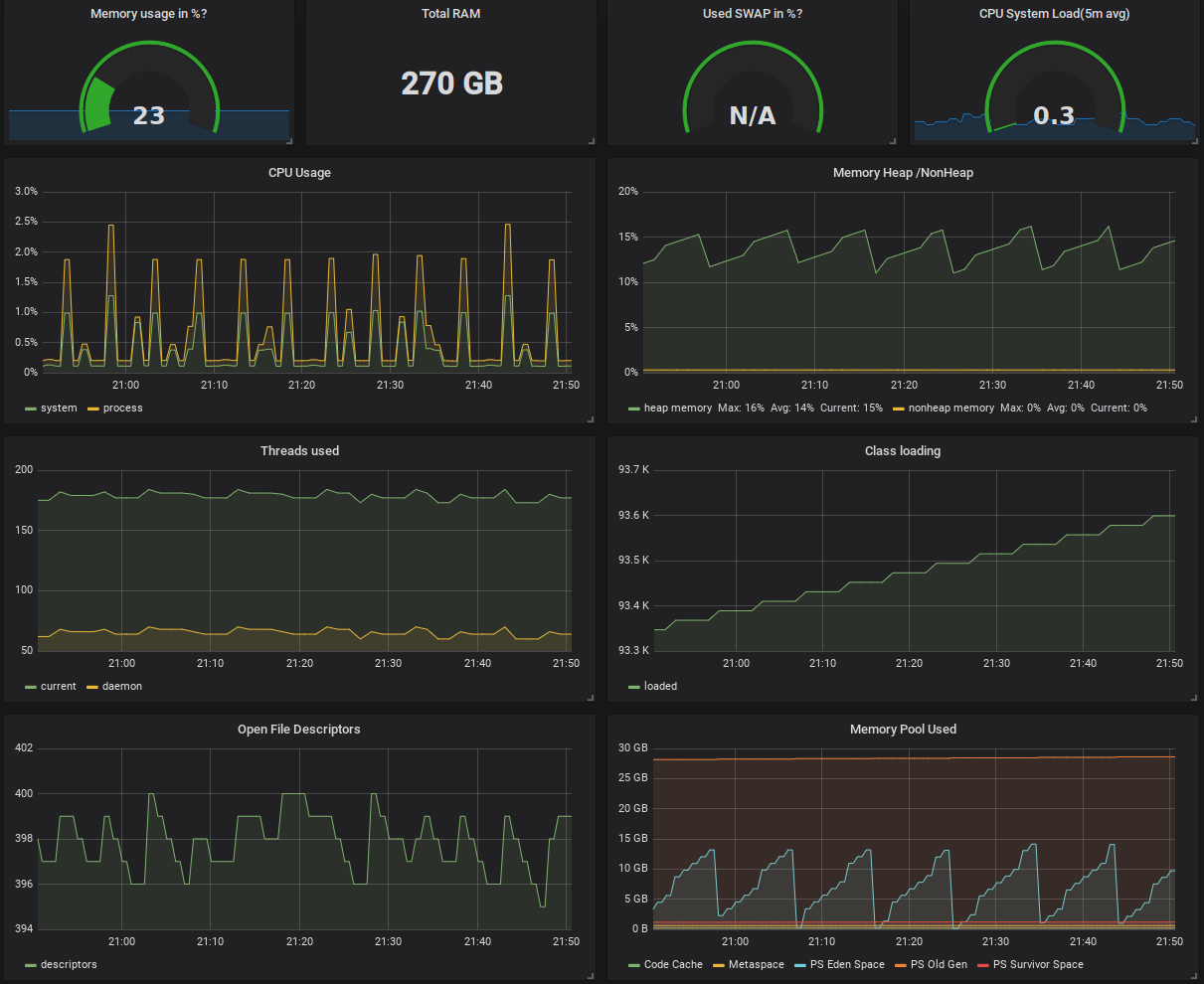

* Puppetserver can expose graphite

* A graphite stack looks very complicated

* Puppetserver has a metrics API and exposes [JMX data](https://www.oracle.com/technetwork/articles/java/javamanagement-140525.html) via [Jolokia](https://jolokia.org/)

* We can load a prometheus exporter into the JVM to write metrics into a prometheus instance

```yaml
puppet::server_jvm_extra_args:
  - '-javaagent:prometheus.jar=127.0.0.1:9020:config.yaml'
```
]

???

JMX data and JVM debugging is a complex topic
in theory JMX is writeable, you can trigger heapdumps, didn't work
the prometheus javaagent is developed and support by the prometheus team
puppetdb/puppetserver expose custom + std JVM metrics
works for puppetdb as well
foreman metrics are availble since a few weeks, didn't test
dont kill your puppetserver by pulling data too often
---

---

Scaling a Puppetserver stack

* It's a complex distributed system with many tunables and pitfalls

* Start with proper monitoring instead of guessing

* Best practice [controlrepo](https://github.com/bastelfreak/puppetcontrolrepo#puppet-all-in-one-stack-on-centos-7) with all tuneables, explanations, unit/acceptance tests

* Contact: [tim@bastelfreak.de](mailto:tim@bastelfreak.de) or bastelfreak on freenode

* [Collection of related talks](https://github.com/bastelfreak/talks)

### Thanks for your attention!

]
